24,000 BTU ACiQ Essentials K-32 Single Zone Mini Split Heat Pump Condenser - R32 | 230V

OVERVIEW

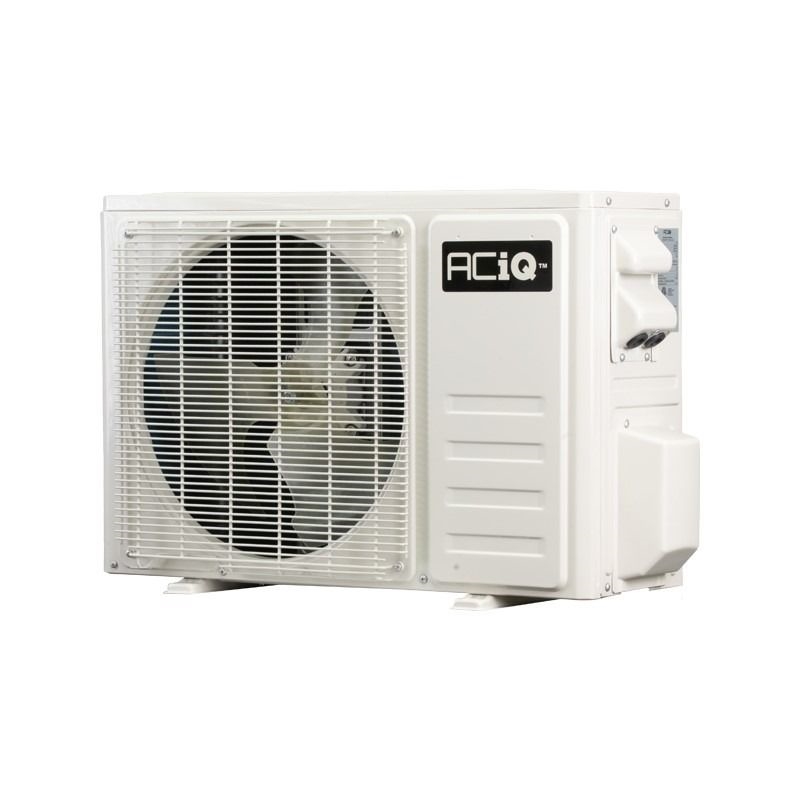

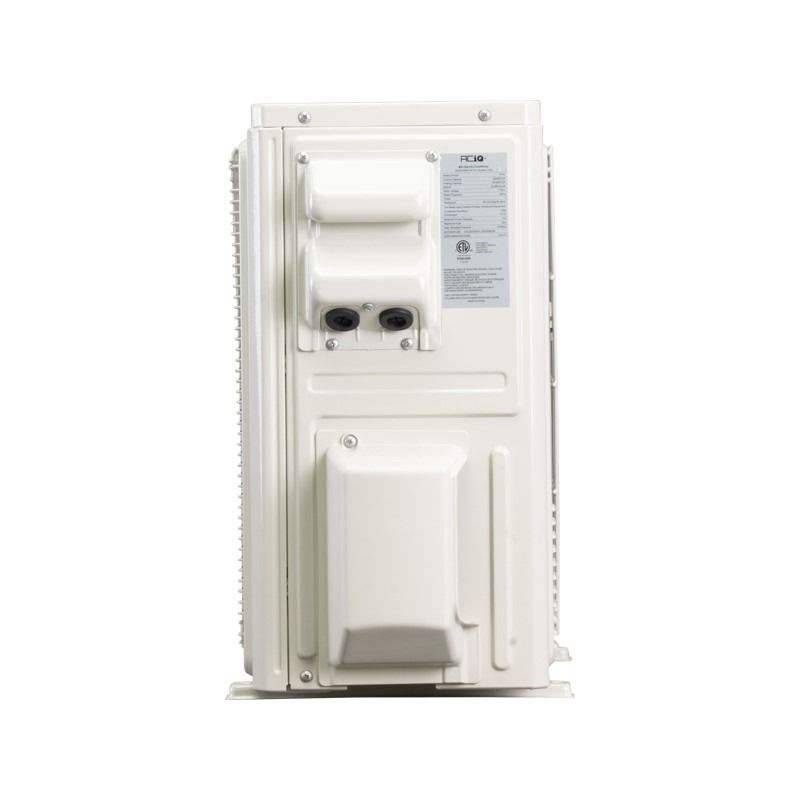

The ACIQ-K24Z-32-HP230B is the 24,000 BTU outdoor heat pump condenser of the ACiQ Essentials K-32 series, the R32, 20 SEER2 generation of the ACiQ Essentials single-zone line. Its inverter rotary compressor adapts output to the load, so it uses as little power as the room allows in both heating and cooling. It replaces the ACIQ-K24Z-HP230B.

QUICK FACTS

• 24,000 BTU cooling / 24,000 BTU heating, 20 SEER2, 8.1 HSPF2, 10.5 EER2
• Cooling from 5 - 127°F and heating from -4 - 75°F outdoor
• Pre-charged for a 16 ft line set (2.6 lbs of R32)
• 208/230V | 1 Phase | 60 Hz; maximum breaker 30 Amps
• Gold Fin full-protection coil coating; 60 dBA outdoor sound level
• 6-year compressor / 4-year parts warranty with online registration

MATCHING INDOOR UNITS

Pair the ACIQ-K24Z-32-HP230B with an ACiQ Essentials K-32 24K wall-mounted air handler (white or black). The AHRI-rated efficiency applies to the matched pair; see the certificate under Documents.

This model does not have quick-connect line set fittings and is not a DIY unit. Line set, control wire, drain hose, whip and disconnect are sold separately unless listed in the kit. A licensed technician must evacuate the lines and verify the charge.
