ACIQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ACIQ-18Z-E-M2, you can run two air handlers off a single condenser, saving space outside and keeping you perfectly comfortable in your home.
The 18,000 BTU, ACIQ-18Z-E-M2 is designed to easily support two air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 22 SEER, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included. For all multi zone ACIQ condensers, a minimum of two air handlers is needed for the unit to function.
ACIQ Essentials air handlers can be used with any ACIQ Multizone condenser or the Essentials Single Zone condenser to create a highly efficient Hyper Heat system. This air handler can handle small to medium sized rooms using adaptive technology to constantly monitor and maintain your ideal temperature no matter what the weather outside.
The ACIQ-09W-E-M air handler includes a soft LED display on the front of the unit, giving you information at a glance. The display shows the room's temperature by default, but it can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, the display will also show any error codes from its self-diagnosing control board, which can be switched off if desired. The included smart remote can show these notifications on its built-in LCD display as well.
ACIQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACIQ is also compatible with Amazon Alexa and Google Assistant.
ACiQ lists these indoor-unit combinations for the ACIQ-18Z-E-M2 condenser:
| SKU | ACIQ-18Z-E-M2 |
|---|---|
| Brand/Manufacturer | ACiQ |
| UPC | 810175553511 |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| SEER2 (Efficiency) | 22 |
| HSPF2 | 8.0 |
| EER2 | 12.3 |
| Cooling BTU | 17,700 BTU |
| Heating BTU | 18,000 BTU |
| Refrigerant | R32 |
| Refrigerant Charge | 2.4 lbs (Pre-charged for 49 ft line set) |
| Electrical | 208/230V | 1 Phase | 60 Hz |
| Warranty | 6 Year Compressor / 4 Year Parts Warranty with Online Registration |
| Weight (in lbs) | 80.5 |
| Height | 21.93" |
| Width | 34.65" |
| Depth | 13.90" |
| AHRI Certificate Number | 217751654, 217751645, 217751636 |
| Compressor Type | Rotary |
| Decibel Level (dBA) | 64 dBA |
| Energy Star | Yes |
| Liquid Line | 1/4"(4) |
| Max Breaker Size | 20 Amps |
| Min. Breaker Size | 15 Amps |

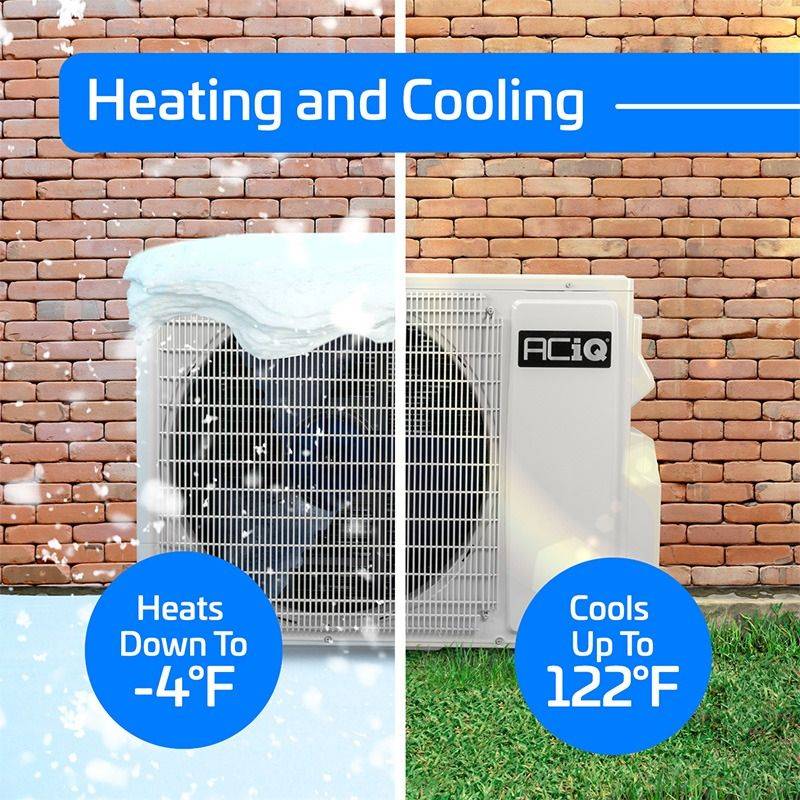

| Min/Max Outdoor Temp for Cooling | -13° - 125° F |
| Min/Max Outdoor Temp for Heating | -13° - 75° F |
| Suction Line | 3/8"(3),1/2"(1) |
| Zone Compatibility | Multi Zone |
Documents
| SKU | ACIQ-09W-E-M |
|---|---|
| Brand/Manufacturer | ACiQ |
| UPC | 810175553535 |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Cooling BTU | 9,100 BTU |
| Heating BTU | 10,000 BTU |
| Refrigerant | R32 |
| Electrical | 208/230V | 1 Phase | 60 Hz |
| Warranty | 6 Year Compressor / 4 Year Parts Warranty with Online Registration |
| Weight (in lbs) | 22.05 |
| Height | 11.77" |
| Width | 30.24" |
| Depth | 7.87" |
| Controller | Wired Included |
| Decibel Level (dBA) | 34 - 42 dBA |
| Liquid Line | 1/4" |
| Maximum CFM | 353 Turbo / 335 Hi / 282 Med / 247 Lo (Airflow) |
| Mini Split Type | Wall Mounted |
| Suction Line | 3/8" |
| Zone Compatibility | Multi Zone |
Documents
